Interface to Ascet
The "ADD/DDS - Ascet" link can be used in different ways:
both GUI and command line access
triggered from both ADD, DDS and Ascet
The following briefly describes this interface with the scope (use case) "ADD Integration in Ascet"

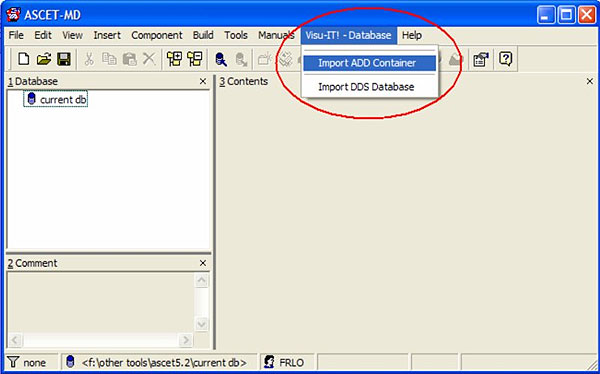

Step 1: Start the ADD Import within Ascet

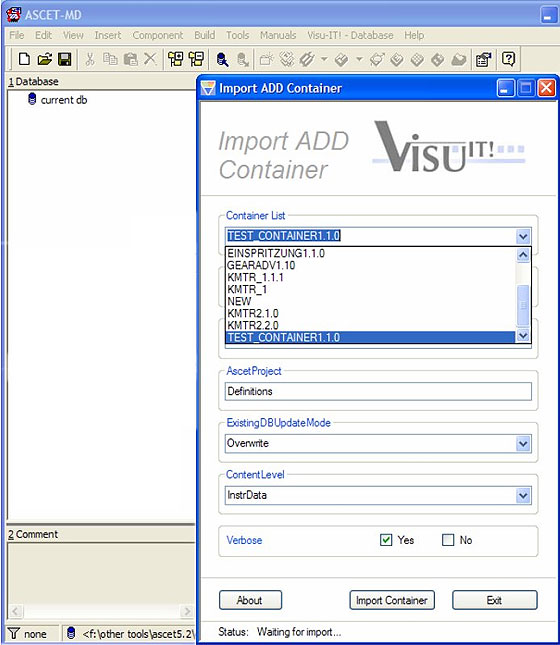

Step 2: Specify the import options
Accesses the ADD database in order to get the list of available ADD containers/specifications
In this dialog, only the most important import options are shown.
There are different import/update modes like:
| Overwrite | Overwrite existing definitions (default) |
| KeepExisting | Keep existing definitions (if not set,
existing Definitions will be overwritten) |
| UpdateOnly | Existing definitions will be updated.
No new definitions will be added |
| CustomInteractive | Let the user decide what to do in
case of conflicting data: 'Overwrite' or 'KeepExisting' |

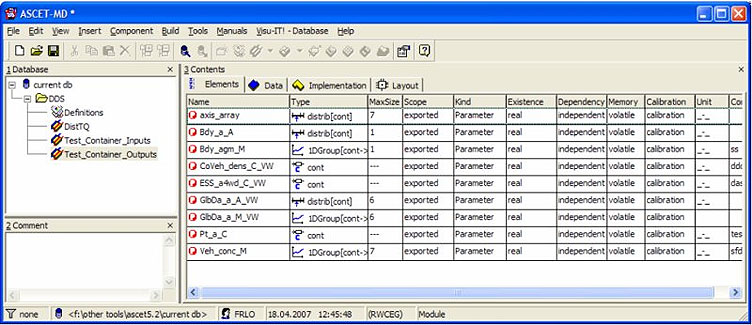

Step 3: Result of ADD Import (1)
Elements
The grouping (via INPUT, OUTPUT, LOCAL) is configurable.
Both the naming and the creation of "project", "module", "class" and also the folder structure are configurable.
The grouping (via INPUT, OUTPUT, LOCAL) is configurable.
Both the naming and the creation of "project", "module", "class" and also the folder structure are configurable.
Step 3: Result of ADD Import (2)
Implementation
